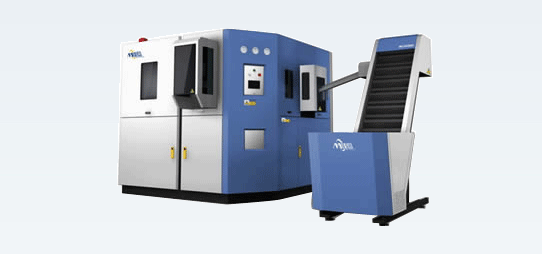

Full automatic bottle blow molding machine

bottle blowing machine
Product description: Our R&D team has dedicated to design the machine by principle of engineered efficiency. Compare to earlier generation, New RB series requires less power due to the small pitch at pre-heater. Thanks to

Product introduction

Equipment introduction

Preform Feeding and Loading
The recycling unit keeps preforms from getting jammed in the unscrambler. The star wheel designed feeding unit, provides easy way of changeover time for different neck preform.

Linear Oven
Turning 180℃ mandrel guarantee the uniform neck section even at critical heating oven. Super small pitch design consumes less power. Unique oven ventilation design make RB series Blow moulding machine handles various of difficult application easily.

* Preform and Bottle Transfer Wheel
Thanks to the classic designed double cam telescopic gripper system, it guarantees the reliability of the movement, and easy to maintain it.

* Moulds and Mould Carriers
The mould carriers adopts shell blow mould design, this reduces the changeover time for different blow moulds. The Mould carriers allow the use of all shell type of moulds form conventional rotary blow moulding machines; it saves the costs for bottle producer. The reliable and quick locking system maximizes the performance of the mould carriers.

Blowing station
Changeable cam stretching curve guider guarantees the quality of different bottles. Monobloc blowing valves achieve the fastest and more consistent blowing process. Bottle neck is protected during the blowing by special designed sealing unit.

Option

* PID system for heating zone (Option)
Infrared thermometer automatic detect the temperature of performs, adjust the temperature of oven automatic. It avoids the influence of temperature different between day time and night. Also the system can add additional lamp alarm unit, It alarms when detected any broken lamps or aging lamps.
* Patented Air Recovery system (Option)

We know the most production cost for blowing the bottles is from generating the high pressure compressed air and reheating the preforms, In order to reduce the production cost for the bottler producer, Mega has introduced Air recovery system. This system recovers up to 30% of final high pressure blowing air.
* Air cooling system (Option)
Thanks to our GM Cai Yuansen, we have developed air cooling system for hot fill PET bottles, after high pressure blowing, an air cooling is introduced it to reduce the level of PET residual stress, and increase the rate of PET crystallization . After air cooling process, PET bottle could stand hot fill without deformation.

Container/Bottle Samples

PET bottles produced by RB Series Rotary Blow Moulding Machines:


2L CSD bottle	300ml water bottle	350ml hot fill PET Bottle

500ml hot fill PET bottle	515ml water bottle	750ml detergen bottle

Specification

Type	RB4	RB6	RB12	RB16
Production output
Per cavity	1,300 BPH	1,400 BPH	1,800 BPH	1,800 BPH
Machine output	5,200 BPH	8,400 BPH	21,600 BPH	28,800 BPH
Bottle dimensions
Max. volume	2 L	2 L	3 L	3 L
Min. volume	0.1 L	0.1 L	0.1 L	0.1 L
Max. diameter	110 mm	110 mm	115 mm	115 mm
Max. height	300 mm	300 mm	350 mm	350 mm
Preform dimensions
Preform neck	Up to 42 mm	Up to 42 mm	UP to 32 mm	Up to 32 mm
Preform support ring	Up to 48 mm	Up to 48 mm	Up to 36 mm	Up to 36 mm
Machine dimension
Blower Floor space (LxWxH)	2.4x1.7x3.0 (M)	2.0x2.7x3.0 (M)	2. 5 x3.0x3.2 (M)	2.8x3.3x3.2 (M)
Oven Floor space (LxWxH)	3.0x0.9x3.0 (M)	3.4x0.8x2.4 (M)	5.0x1.5x2.0 (M)	5.5x1.5x2.0 (M)
Electrical supply
Voltage standard	380V/3PH/50HZ or Special order
Power (Max load)	90KW	120KW	220KW	260KW
Air supply
Max. blowing	40 Bar	40 Bar	40 Bar	40 Bar
Pressure	580.15 PSI	580.15 PSI	580.15 PSI	580.15 PSI
Air consumption	3. 5 M 3 /Min	6.0 M 3 /Min	15 M 3 /Min	20 M 3 /Min
Cooled water supply
Water pressure	4 Bar	4 Bar	4 Bar	4 Bar
Water pressure	58 PSI	58 PSI	58 PSI	58 PSI
Water temperature	10 ℃	10 ℃	10 ℃	10 ℃
Water temperature	50 ?	50 ?	50 ?	50 ?
