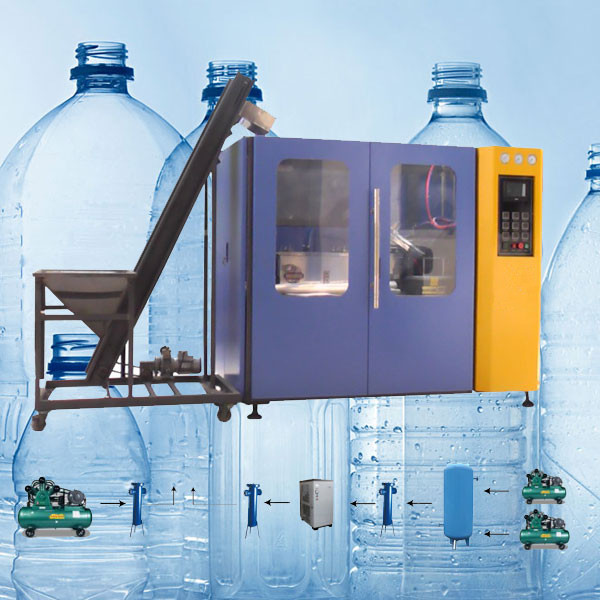

Full automatic bottle blow molding machine - copy
- bottle blowing machine
- Product description: Our R&D team has dedicated to design the machine by principle of engineered efficiency. Compare to earlier generation, New RB series requires less power due to the small pitch at pre-heater. Thanks to
Product introduction
RL-A2 two-step manually preform inserted full-auto bottle blower is applicable for blowing the carbonic acid beverage bottle, mineral spring water bottle,farm chemical bottle,oil bottle,medical,hot-filled bottle in any shapes and made of PET,PC,PP or PE raw material.
MACHINES FEATURES
◆Use the advanced touch-screen computer control,easy opertion,stable quality and high safety.
◆Use the electric appliances and pneumatic components of worldwide famous brands,stable and accurate velocity.
◆The whole production process is finished by the automatic micro-computerized control,auto-fault detection,automatic alarm, each action has interlocking device as a security guarantee.
◆The gas circuit is designed into low-pressure and high-pressure twice blowing and action three portions,making sure of an even bottle forming and a steady action.
◆Use a high pressure,double crank arm and linkage for boosted mold lock,a powerful mold locking strength.
◆The blower is reasonably designed,smooth running,with the production workmanship flow fully automatic,and holds less investment,high efficiency,easy operation,simple repair,safety etc.Advantages.
TYPE |
ITEM |
UNIT |
TECHNICAL DATA A2 |
CONTAINER
|
Product material |
|
PET |
Container volume |
L |
≤2 |
|
Theoretical Output |
Pcs/hr |
≤0.6L/1500 |
|
Preform Length |
mm |
50-200 |
|
Max.length of bottle |
mm |
320 |
|
|
Max.mould plate dimension(LxW) |
mm |
300*340 |
Max.mould thickness |
mm |
300 |
|
Clamping force |
KN |
150 |
|
Mould opening stroke(Adjustable) |
Mm |
130 |
|
AIR COMPRESSOR |
High pressure compressor |
M3/Mpa |
1.0/3.0*2set |
Low pressure compressor |
M3/Mpa |
2.1/1.2*1set |
|
DRYER |
Air dryer |
M3/Mpa KW |
2.0/3.0 |
MAIN MACHINE ELECRICITY |
Power |
KW |
15 |
Voltage/Frequency |
V/HZ |
380-220/50-60 |
|
MACHINE SIZE AND WEIGHT |
Main machine(LxWxH) |
M |
2300*1400*1900 |
Main machine weight |
T |
1.8 |
|
Conveyer(LxWxH) |
M |
1300*850*2400 |
|
Conveyer weigth |
T |
0.15 |
|
Higt pressure compressor (LxWxH) |
M |
1.90*0.75*1.5 |
|
Low ressure compressor (LxWxH) |
M3/Mpa KW |
1.85*0.70*1.5 |
|
High pressure air receiving tank(DxH) |
M/Mpa |
0.70*2.55/3.0 |
|
Air dryer (LxWxH) |
M |
0.83*0.50*0.95 |
|
SAFETY |
Auto-emergency alarm |
SAFETY INTER-LOCKING DEVICE |
