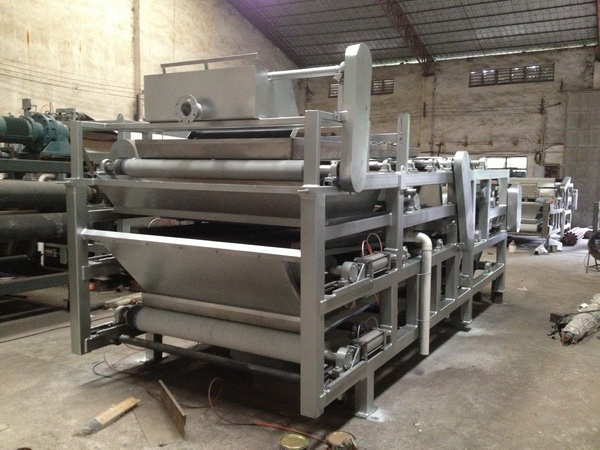

Belt conveyor concentrate dewatering machine (with concentrated sludge dewatering machine)

Product introduction

A belt filter Thickener (belt concentrated sludge dewatering machine) (Belt Thickening and dewatering machine) scope:
Filter thickener belt (belt type sludge thickening and dewatering machine) can be widely used in urban sewage treatment, textile printing and dyeing, electroplating, paper, leather, food processing, mining, coal, petroleum, chemical, chemical, pharmaceutical, ceramics etc. industry sludge or slurry dehydration, adapt to industrial production of solid-liquid separation or liquid invasion out process.
Two. Concentrate filter press belt (belt concentrated sludge dewatering machine) (Belt Thickening and dewatering machine) product features
1. Using the international latest filter technology, focuses on concentrating process and filtration technology have great technical promotion, equipped with independent concentrator, an increase of a mesh belt, the use of never deviation mechanism. Compared with ordinary models, the main advantages of this machine are as follows: the treatment capacity is increased, the moisture content of filter cake is reduced, the flushing water is clean and the reliability is high.
2 treatment than the average model of 1.5 times more than the filter cake moisture content than the ordinary model of 10% or more. Operating costs than ordinary models to save more than 20%.
3 to 24 hours of continuous operation, high degree of automation, simple operation, convenient maintenance
3. With espresso filter press sludge thickening and dewatering machine (belt thickener dewatering machine) main type, dimensions and technical parameters
technical parameter
model
LDD1000
NS7W
LDD1500
NS7W
LDD2000
NS7W
LDD2500
NS7W
LDD3000
NS7W
power
(KW)
host
Two point two
Three
Four
Five point five
Seven point five
Thickener
Zero point seven five
One point five
Two point two
Two point two
Three
complete set
Twelve
Fifteen
Nineteen
Twenty-one
Twenty-five
Filter band width (MM)
One thousand
One thousand and five hundred
Two thousand
Two thousand and five hundred
Three thousand
Treatment volume (M3/H)
8-16
12-22
18-32
22-40
30-50
Appearance
size
Long (MM)
Five thousand and four hundred
Five thousand and four hundred
Five thousand and four hundred
Five thousand and four hundred
Five thousand and four hundred
Width (MM)
One thousand and nine hundred
Two thousand and four hundred
Two thousand and nine hundred
Three thousand and four hundred
Three thousand and nine hundred
High (MM)
Two thousand
Two thousand
Two thousand
Two thousand
Two thousand
Whole weight (KG)
Four thousand
Five thousand and five hundred
Six thousand and five hundred
Eight thousand
Nine thousand and five hundred
LDD refers to "pneumatic control type belt type filter press, the number of 1000-3000 representation of bandwidth, s acupressure filter and seven acupressure filter and number, n refers to the" thickener "
Four. The quality of concentrated belt filter press protection
1 the surface of the host machine frame is treated by hot dip galvanized or hot plastic spraying, and the ability of acid and alkali corrosion resistance can reach eight years.
above。
The 2 main body part adopts the high quality stainless steel and anti-corrosion materials, including: the main and auxiliary dehydration roller blade, fender,
Water tank, waterproof cover, nozzle, M10 following screws, 5mm the following sheet parts, acid, alkali anti rust ability
Up to eight years or more.
3 high quality bearing cast iron seal, double roller bearing Dalian Metallurgical Bearing, can be used for more than five years.
4 extrusion roller, transmission roller, guide roller for high-quality seamless pipe outsourcing high-quality wear-resistant rubber, can be used for more than five years.
5 main drive motor with domestic famous brand, can be used for more than five years.
6 filter belt made of polyester with high strength and good quality, can be used for more than one year.
