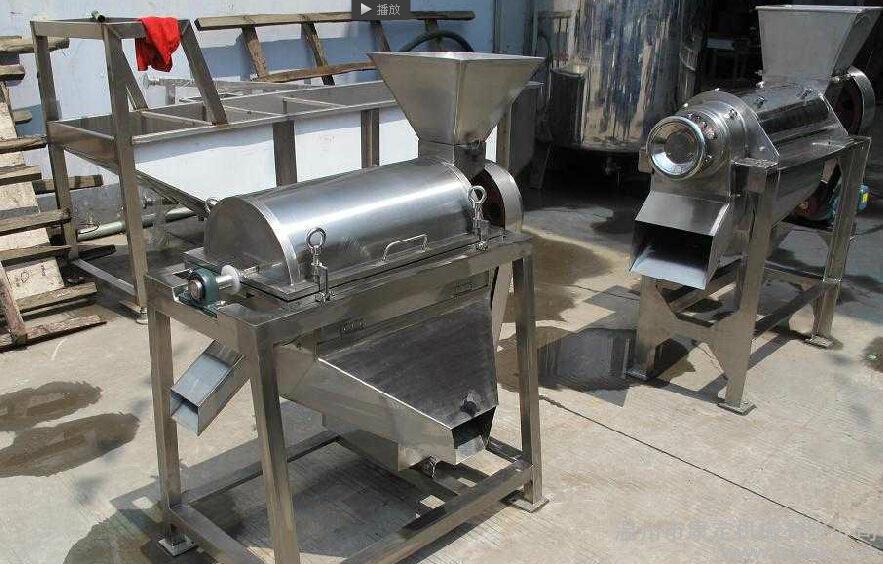

Double beating and pitting beater

Product introduction

Purpose and scope of application
. this machine is suitable for (mango, peach and apricot stone fruits, berries (Kiwi, strawberries,), and pre cooked softening of pomaceous fruit (apple, pear and other fruits to nuclear and pulping and separation
It features: 1, automatic separation of pulp;
2, can be combined in the production line, but also single production;
3, and material contact parts are made of high quality stainless steel, in line with the food and health
Students.
Three, the main structure and working principle
For rotor of rotor. The machine has a single channel and dual channel two models, when used in the drupe fruit beating, if the selection of single channel to nuclear beating machine, as long as the change in the map shows, you can go nuclear, flesh and flow to the next working procedure, for Figure 2 shown in rotor can be peeled beating; if the selection of double channel to nuclear beater, toudao Figure 1 shows, the second to figure 2 shown in rotor can be realized to nuclear (breaker), beating peeled (2) process; if used for berry, pome beating, whatever the choice of single or double, shall be the rotor Figure 2 shown in rotor can be.
9:28 main structure: transmission system, bearing, shaft sleeve, cylinder cover, block slurry plate, a cylinder body, a spline shaft, a screen, a scraper (or beating rods), cylinder cover, a frame, etc.
The working principle:
Drupe (Figure 1):
Motor through a triangle belt transmission, the rotor high-speed rotation, fruit from the feed inlet of the machine, feeding slurry leaf will material screw conveyor to the beating rod, in the role of the beating rod, the material is pounded. Due to the action of centrifugal force, material in the juice, and meat into paste) through a sieve sieve into next procedure, nuclear is by a slurry leaf being discharged out of the slag outlet, so as to realize the automatic separation of slurry.
