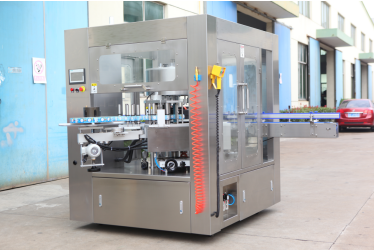

Full automatic hot melt glue labeling machine opp labeling machine
- Product description: Equipment brief introduction 1.Specifications 1). High quality and efficient machine 2). easy to operate and maintain 3). PLC control ,touch screen 4). good after-sale service 5). warranty :on
Product introduction
Auto stop when pasting failure
Bottle material: Plastics, glass, steel, etc
Made of stainless steel 304 Stainless steel, and T6 aluminum alloy after being anode hardened
Adjustable label-pasting speed of main engine
Sensor eye detect system, no bottle no labeling
Horizontally adjustable main engine
Alarm for missing label or gap and label running-out
Indicator light and alarm for abnormality
Technical Parameter hot melt glue labeling machine
|
Labeling Speed |
12000 bottles per hour |
|
Main engine size |
4500L x 1600W x 2000H mm |
|
Main engine power supply |
AC 3 phase220-380V |
|
Main engine power |
8kw |
|
Label material |
OPP Paper |
|
Label length |
10mm -300mm |
|
Bottle diameter |
50- 106 mm |
|
Main electrical configuration |
||||
|
Name |
specifications |
amount |
Brand |
place of production |
|
PLC |
6ES7288-ISR20-OAAO |
1 |
|
Germany |
|
frequency changer |
6ES7288-ICR40-OAAC |
1 |
|
Germany |
|
Servo drive |
SINAMICS V90 |
1 |
|
Germany |
|
Touch screen |
6AV6648-OCC11-3AXO |
1 |
|
Germany |
|
Sensor |
FX501 |
2 |
|
Japan |
|
SMPC |
S8JC-Z05024C |
1 |
|
France |
|
A.C.contactor |
CJX2910M |
1 |
|
France |
|
DC 24VRelay |
MY2N-J |
3 |
|
France |
