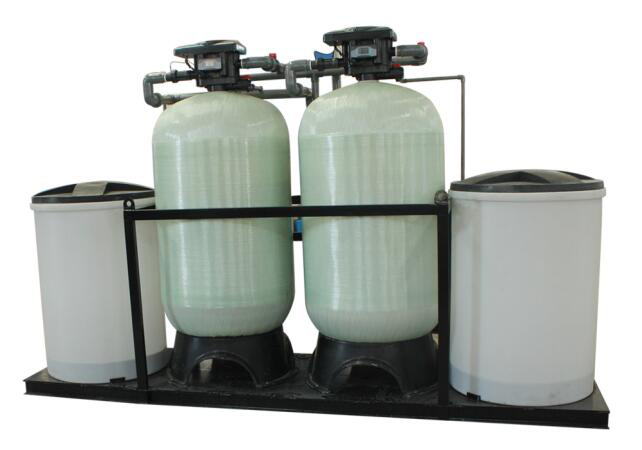

Resin water softener machine
- Product description: What does a Water Softener do? Water softeners use a process called ion exchange. The softener unit contains a column filled with beads of a resin which remove the dissolved calcium and magnesium io
Product introduction
Working condition of resin water softener system
|
NO. |
Items and description |
Technical parameters |
|
01 |
automatic water softener |
Ion exchange resin regeneration type |
|
02 |
Running method |
Automatic flow rate timing |
|
03 |
Working temperature |
0-55 ℃ |
|
04 |
Working pressure |
0.2-0.5Mpa |
|
05 |
Inflow water pressure |
0.15-0.5Mpa |
|
06 |
Inflow water temperature |
5-45 ℃ |
|
07 |
Inflow water hardness |
≤8mmol/L |
|
08 |
Output water hardness |
≤0.03mmol/L |
|
09 |
Salt tablet consumption |
120-140g/L(1 Liter resin) |
|
10 |
Backwash flow for cleaning |
1.5%-3% of capacity |
|
11 |
Resin material |
001*7 cat ionic resin |
|
12 |
Power supply for control valve |
100-240V,50/60Hz,1 phase |
|
13 |
Power for valve working (for automatic valves ) |
5W-10W-20W-30W-40W-50W |

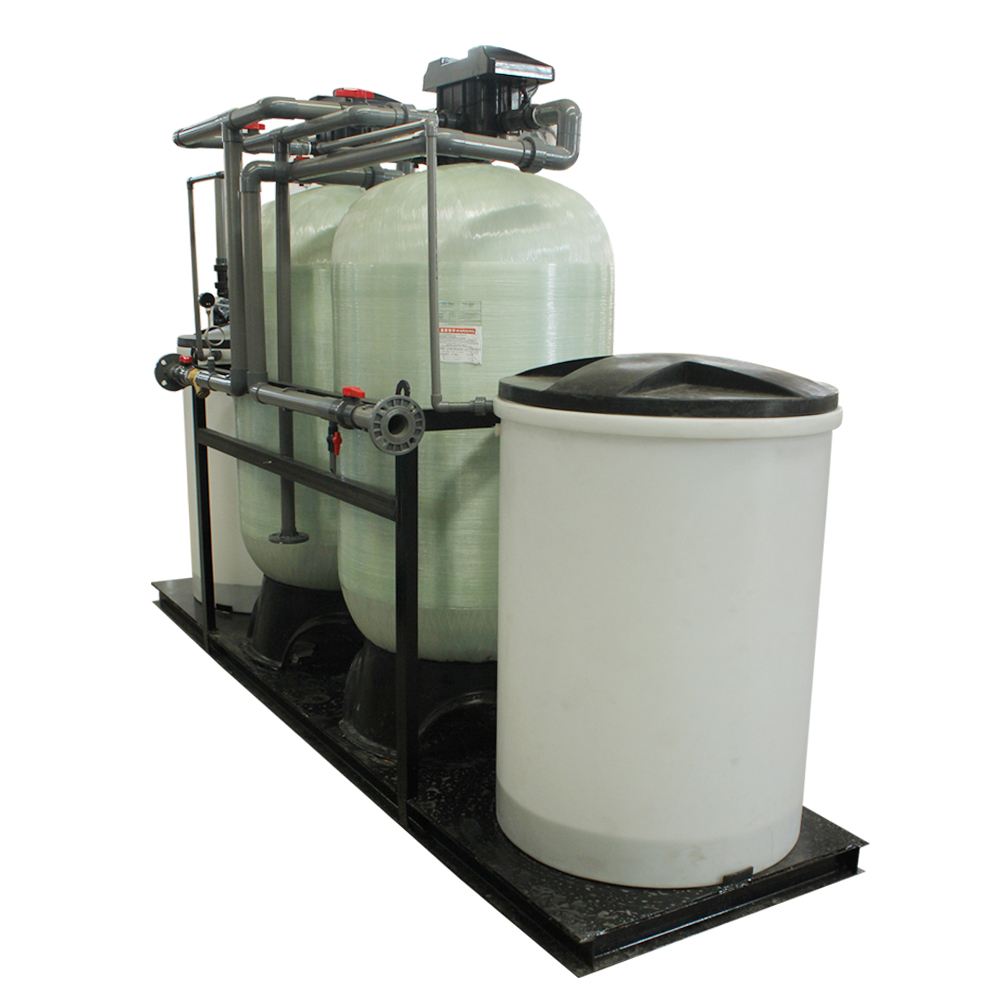

Supplying list for 15 to 30 m3/hour automatic double-tank water softener,model:YL-II-15A
|
NO. |
Items and description |
specifications |
Nos. |
|
1 |
Automatic softening valve |
RUNXIN, capacity: 15m?/Hour/piece |
2 pieces |
|
2 |
Resin tanks(FRP lined with PE ) |
Dia900mm×H1900mm |
2 pieces |
|
2-2 |
Central pipe inside resin tank |
main pipe and subsidiary conduit |
2 pieces |
|
2-3 |
Upper and bottom water collectors |
Control by valve |
2 pieces |
|
3 |
Brine tank(PE) |
800 Liters(Dia920mm*H1350mm) |
2 pieces |
|
3-02 |
brine absorption valve |
Matched for brine tank |
2 pieces |
|
3-03 |
brine absorption tube |
Matched with brine tank |
2 pieces |
|
4 |
Ion Exchange resin |
001×7mm strong acid cation,20Kg/bag |
1040Kg(52bags) |
|
5 |
Integrated skid+pipe accessories |
Mild steel+UPVC |
1 set |
|
5-2 |
support pallet for skid-installation |
Carbon/mild steel support skid |
1 unit |
|
5-3 |
Connection pipes to water inlet |
UPVC pipe to water inlet,outlet |
One unit |
|
5-4 |
Plastic manual valves |
Water inlet,water-outlet,drain |
6 pieces |
|
5-5 |
Y type filter,100 micron |
UPVC material, water inlet:2’’ |
1 piece |
|
5-6 |
Pressure gauge |
To show the feeding water pressure |
1 piece |
|
6 |
Package bags for resin material |
FIBC bags |
2 pieces |
