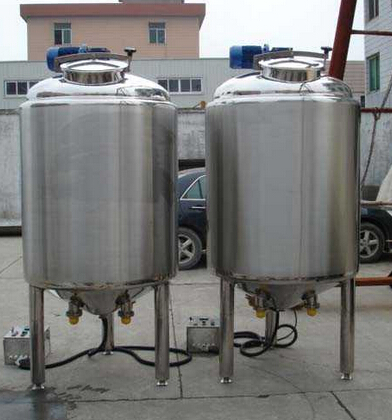

Electric heating mixing tank

Product introduction

Electric heating mixing tank used in food, dairy, pharmaceutical, daily chemical, beverage, oil, chemical, paint and other industries as a heating, mixing or sterilization treatment. And according to the process need to use a fully enclosed structure. Open type electric heating mixing tank on the inclined bottom three layer structure, with automatic temperature control heating, heat preservation, mixing function. The device has the advantages of energy saving, noise elimination, acid and alkali resistance, corrosion resistance, productivity and strong, clean and easy to operate, and other advantages, fast heat transfer, adapt to large temperature difference, easy cleaning.
Electric heating mixing tank electric heating mixing tank
Main technical parameters
Nominal volume
(L)
300L
500L
600L
800L
One thousand
One thousand and two hundred
Two thousand
Three thousand
Four thousand
Five thousand
working pressure
0.09Mpa
Test pressure
0.15Mpa
Agitator speed
36r/min
Heating area
(M2)
One point six
Two
One point five
Three point five
Four point five
Five
Seven point five
Eight point five
Ten point five
Thirteen point three
Material import and export (DN)
Forty
Forty
Forty
Forty
Forty
Forty
Forty
Forty
