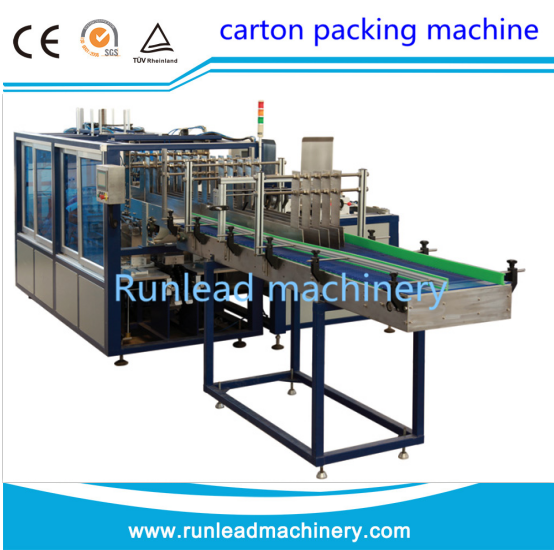

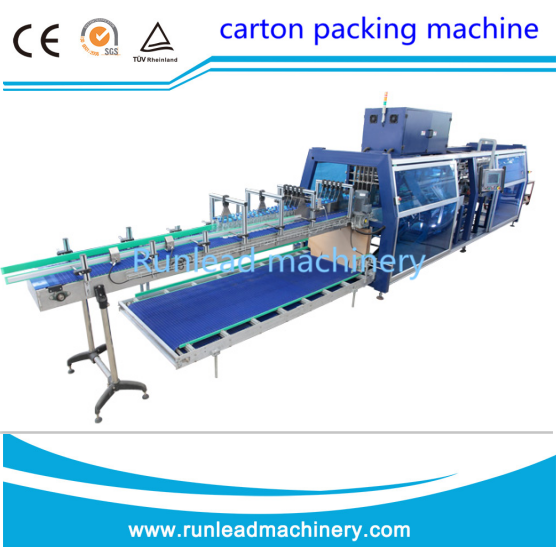

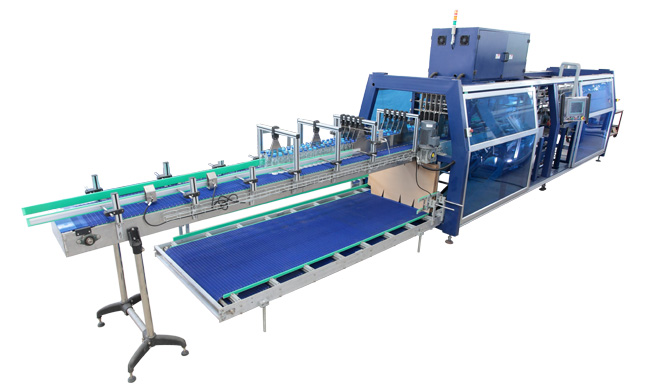

RL-XB45 automatic carton packaging machine
- Product description: RL-XB45 automatic carton packaging machine
Product introduction
Advantages:
The equipment adopts PW positioning, PLC, automatic operation, the main rotation driven by imported motor, at all levels through the chain, sprocket rotation speed. Its high degree of automation, reliable control, easy adjustment, intelligent operation and other characteristics, can be widely used in the beer, beverage, chemical, food, pharmaceutical and other industries, can carry on various kinds of bottle jar two packaging, and supporting the use of automatic filling production line.
Technical data:
|
Product capacity
|
35-45case/min |
|
Production effciency |
about 98% |
|
Into the cardboard way |
Side into the cardboard suction cup pickup |
|
Single box glue consumption |
2-4g |
|
Packing ytpe |
640ml standard 3 × 4 packaging bottle |
|
Dimensions of bottles |
Diameter φ60-90mm height 120-280mm |
|
Machine Dimensions |
10400×1800×2600(mm) |
|
compressed air pressure |
0.4-0.6Mpa;0.2NM2/min |
|
Total power |
20KW |
|
Machine weight |
5000KG |
